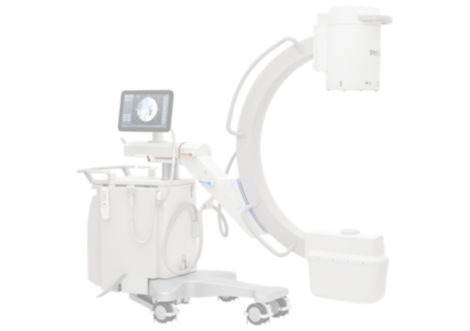

Zenition 50

Specifications

X-ray generation

X-ray generation

X-ray tube	Monoblock 78,125 kHz high-frequency, micro-processor controlled generator
X-ray generator	Rotating anode tube with active heat management
Nominal power	15 kW: 120 kV, 125 mA

Imaging chain

Imaging chain

Image Intensifier	Triple-mode 9" HRC / Triple-mode 12" GG
TV camera type	CCD, high resolution 1K²
Constant beam filtration	Integrated beam filter: 1.0 mm Al. + 0.1 mm Cu
Nominal II formats	23, 17, and 13 cm (9", 7", and 5") / 31, 23, and 17 cm (12", 9", and 7")
Image processing	✓
Stand monitor	15" LCD monitor on the C-arm gives a whole new level of simplicity

Connectivity

Connectivity

Analog video out	✓
Video in	S-Video, DVI (digital and analog), SDI
Digital video out (optional)	2 DVI connectors left and right monitor
USB storage	PNG, MP4, BMP
Advanced DICOM/IHE package (optional)	Modality Worklist Management, Modality Performed Procedure Step Storage Commit, Full compliance to the IHE Scheduled Workflow Integration profile

Options

Options

Stand monitor	✓
Handheld remote control	Controls the main image handling functions
Touchscreen	Available for Mobile View Station
ViewForum	✓
Image Viewer	Multi Modality Viewer
Vascular Extension	Subtracted fluoroscopy, View Trace, Roadmap, Remask, Smart Mask and CO² mode

Geometry

Geometry

C-arm depth	61 cm (24.0”)
Free space within C-arm	77 cm (30.3”)
Rotation	± 360°, with safety stop at ± 135°
Source Image Distance	98 cm (38.7”)
Angulation	+90° to -25 °
Extended angulation (optional)	+90° to -45° for increased projection flexibility
Lowest lateral working position	103.4 cm (40.7”)
